VTOL / COMPACT ENDURANCE
JT-245
A compact, long-endurance hybrid-wing VTOL for runway-free operations.
240 minMaximum Endurance3 kgPayload2450 mmWingspan
View Specifications ↘
TJW UAV PRODUCT CENTER
PLATFORMS AND SYSTEMS, SELECTED AROUND THE MISSION.
Compare runway-free VTOL aircraft, fixed-wing platforms and specialized systems for firefighting, training, autonomous inspection and edge computing.
01 / PRODUCT CATEGORIES
THREE PRODUCT LINES, ONE MISSION-LED SELECTION.
Choose a flight platform or integrated mission system based on takeoff environment, endurance, payload, task and deployment method.
02 / VTOL UAVS
RUNWAY-FREE, WITH PAYLOADS FROM 3 KG TO 35 KG.
The JT series combines vertical takeoff with fixed-wing cruise, from compact endurance platforms to large heavy-payload missions.
VTOL / PAYLOAD CAPACITY
JT-290
A lightweight hybrid-wing VTOL with greater payload capacity and endurance.
300 minMaximum Endurance5 kgPayload2900 mmWingspan
View Specifications ↘
VTOL / EXTENDED PLATFORM
JT-380
A VTOL platform for medium payloads and long-endurance deployment.
220 minMaximum Endurance7.5 kgPayload3800 mmWingspan
View Specifications ↘
VTOL / HEAVY MISSIONS
JT-450
A heavy mission platform with fuel-powered cruise and electric VTOL.
180 minMaximum Endurance10 kgPayload4500 mmWingspan
View Specifications ↘
VTOL / HEAVY PAYLOAD ENDURANCE
JT-500
A large carbon-fiber composite platform with electric or fuel-powered options.
360 minMaximum Endurance35 kgPayload5000 mmWingspan
View Specifications ↘03 / MISSION UAVS & SYSTEMS
SPECIALIZED AIRCRAFT, AUTOMATION AND EDGE COMPUTING.
Purpose-built systems extend the range from multi-purpose eVTOL and automated inspection to firefighting, training and local edge processing.
MISSION VTOL / MULTI-PURPOSE
MX65 eVTOL
Emergency reconnaissance, mapping and material transport in one configurable platform.
25 kgMaximum Payload4 hNo-load Endurance4200 mmWingspan
View Specifications ↘
AUTONOMOUS VTOL / DOCK SYSTEM
FW-VTOL20
A foldable tilt-rotor aircraft and automated dock for urban inspection and mapping.
17 kgTakeoff Weight2 hCruise EnduranceAutomaticCharging
View Specifications ↘
MULTIROTOR / FIREFIGHTING
MF30
Targeted fire suppression with extinguishing projectiles or a high-pressure water system.
30 kgPayload49 kgTakeoff Weight50 minNo-load Endurance
View Specifications ↘
MULTIROTOR / CAAC TRAINING
MT25
A medium-class training platform supporting UAS identification and flight-track reporting.
15 kgPayload34 kgMaximum Takeoff Weight20 minNo-load Endurance
View Specifications ↘
MULTIROTOR / HEAVY FIREFIGHTING
MF50
A heavy firefighting platform with remote operation and line-level obstacle avoidance.
55 kgWater Capacity95 kgMaximum Takeoff Weight50 minNo-load Endurance
View Specifications ↘
AUTONOMOUS OPERATIONS / EDGE COMPUTE

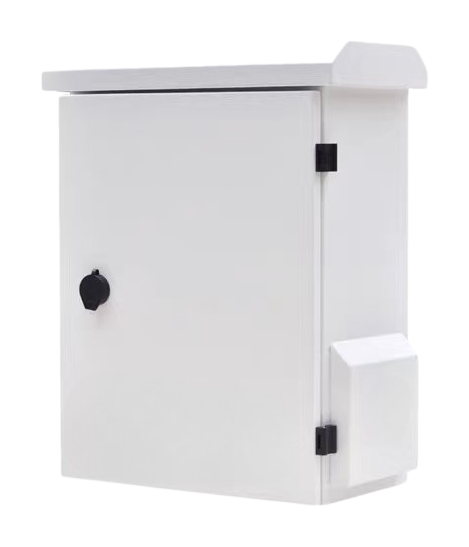

ECN Edge Node
Outdoor local processing for UAVs, robotic dogs and mobile robots.
5G VPNConnectivityNX SuperCompute ClusterOutdoorDeployment
View Specifications ↘04 / FIXED-WING UAVS
HIGH SPEED, LONG RANGE AND RAPID DEPLOYMENT.
ERS-20, Switchblade Drone and X8 form the current fixed-wing range for heavy payloads, rapid response and flying-wing missions.
FIXED WING / HEAVY PAYLOAD ENDURANCE
ERS-20
A delta-wing platform for heavy-payload and long-range missions.
15—20 kgPayload170 km/hMaximum Speed200 kmMaximum Range
View Specifications ↘
FIXED WING / RAPID DEPLOYMENT
Switchblade
Available in 1400 mm and 1800 mm wingspans for rapid-response missions.
1.5—5 kgPayload RangeApprox. 160 km/hMaximum Speed30 kmVideo Link Range
View Specifications ↘
FIXED WING / FLYING WING
X8
A compact flying-wing platform balancing payload, cruise efficiency and portability.
6 kgPayload120 km/hCruise Speed60—100 kmRange
View Specifications ↘
05 / VERIFIED MANUAL DATA
JT-245
Compact long-endurance hybrid-wing VTOL. Data shown is from the supplied JT-245 product manual.
- Maximum Takeoff Weight
- 13.5 kg
- Payload
- 3 kg
- Maximum Endurance
- 240 min
- Cruise / Max Speed
- 80 / 108 km/h
- Service Ceiling
- 5000 m
- Data Link Options
- 15 / 30 / 50 km
- Positioning
- RTK / PPK
- Protection / Wind Resistance
- IP54 / 13 m/s
- Transport Case Size
- 137 × 41 × 47 cm
06 / VERIFIED MANUAL DATA
JT-290
Heavy-payload hybrid-wing VTOL. Data shown is from the supplied JT-290 product manual.
- Maximum Takeoff Weight
- 18 kg
- Payload
- 5 kg
- Maximum Endurance
- 300 min
- Cruise / Max Speed
- 75 / 100 km/h
- Service Ceiling
- 7000 m
- Data Link Options
- 15 / 30 / 50 km
- Positioning
- RTK / PPK
- Protection / Wind Resistance
- IP54 / 13 m/s
- Transport Case Size
- 155 × 42 × 47 cm
07 / VERIFIED MANUAL DATA

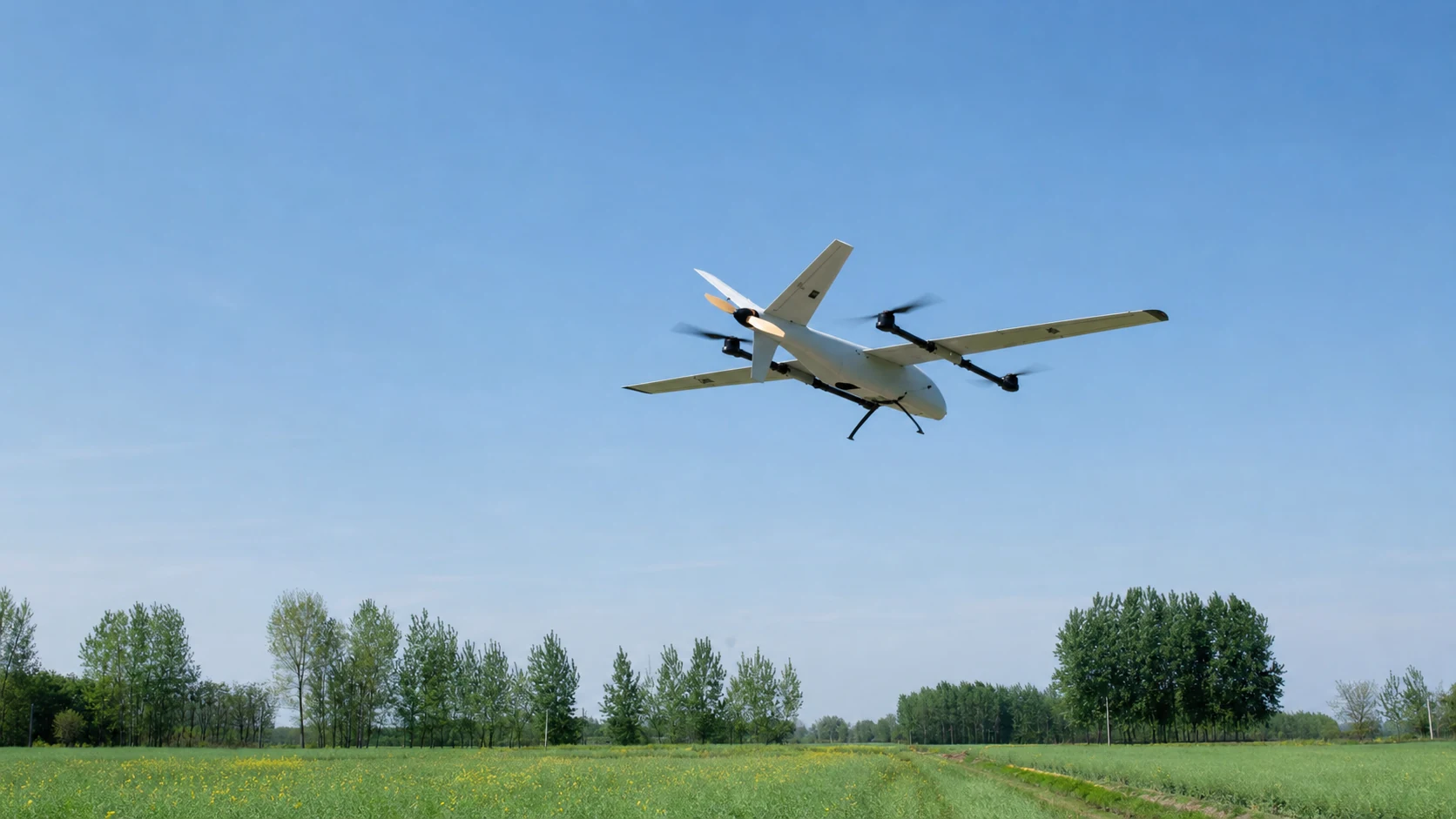

JT-380
Medium VTOL platform. Data shown is from the supplied JT-380 product manual.
- Maximum Takeoff Weight
- 35 kg
- Payload
- 7.5 kg
- Length / Wingspan
- 1800 / 3800 mm
- Maximum Endurance
- 220 min
- Cruise / Max Speed
- 86 / 120 km/h
- Service Ceiling
- 5000 m
- Wind Resistance
- Level 7
- Data Link Options
- 15 / 30 / 50 km
- Positioning
- RTK / PPK
- Transport Size
- 190 × 53 × 50 cm
08 / VERIFIED MANUAL DATA
JT-450
Heavy hybrid-power VTOL platform. Data shown is from the supplied JT-450 product manual.
- Maximum Takeoff Weight
- 45 kg
- Payload
- 10 kg
- Length / Wingspan
- 2400 / 4500 mm
- Maximum Endurance
- 180 min
- Cruise / Max Speed
- 95 / 120 km/h
- Service Ceiling
- 5000 m
- Cruise / VTOL Power
- Fuel / Electric
- Data Link Options
- 15 / 30 / 50 km
- Positioning
- RTK / PPK
- Transport Size
- 200 × 65 × 65 cm
09 / CONFIRMED PRODUCT DATA

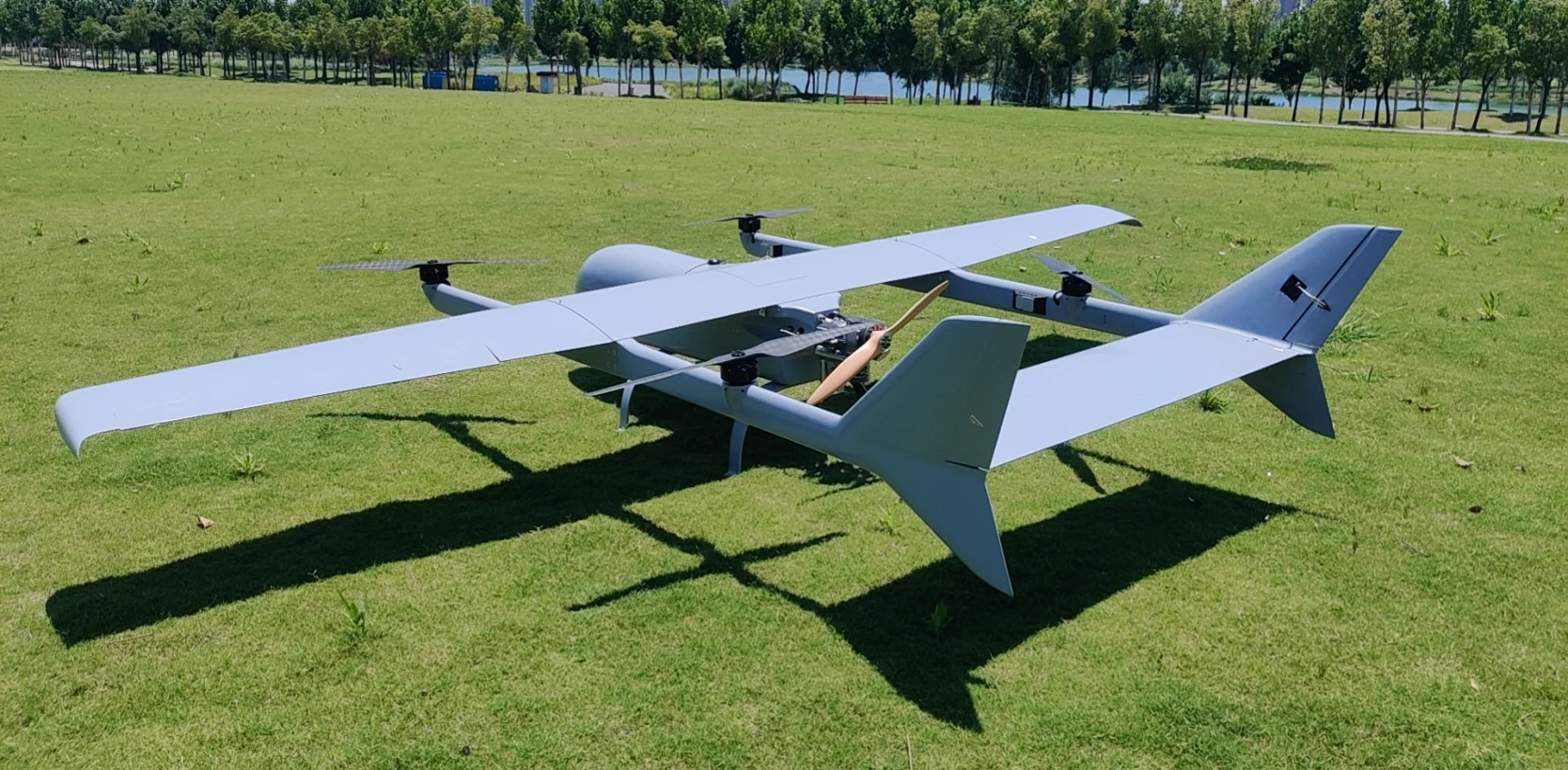

JT-500
Large carbon-fiber composite VTOL platform. Data shown follows the confirmed product introduction.
- Maximum Takeoff Weight
- 130 kg
- Payload
- 35 kg
- Length / Wingspan
- 2750 / 5000 mm
- Maximum Endurance
- 360 min
- Cruise / Max Speed
- 140 / 150 km/h
- Service Ceiling
- 5000 m
- Power Options
- Electric / Fuel Options
- Positioning Accuracy
- Horizontal 1 cm / Vertical 3 cm
- Positioning / Wind Resistance
- RTK / PPK · Level 7
- Transport Size
- 230 × 93 × 93.5 cm
10 / FIXED-WING SPECIFICATIONS
Fixed-wing product specifications.
The following data comes from the supplied specification images; official manuals and application photos can be added later.
FIXED WING / DELTA WING

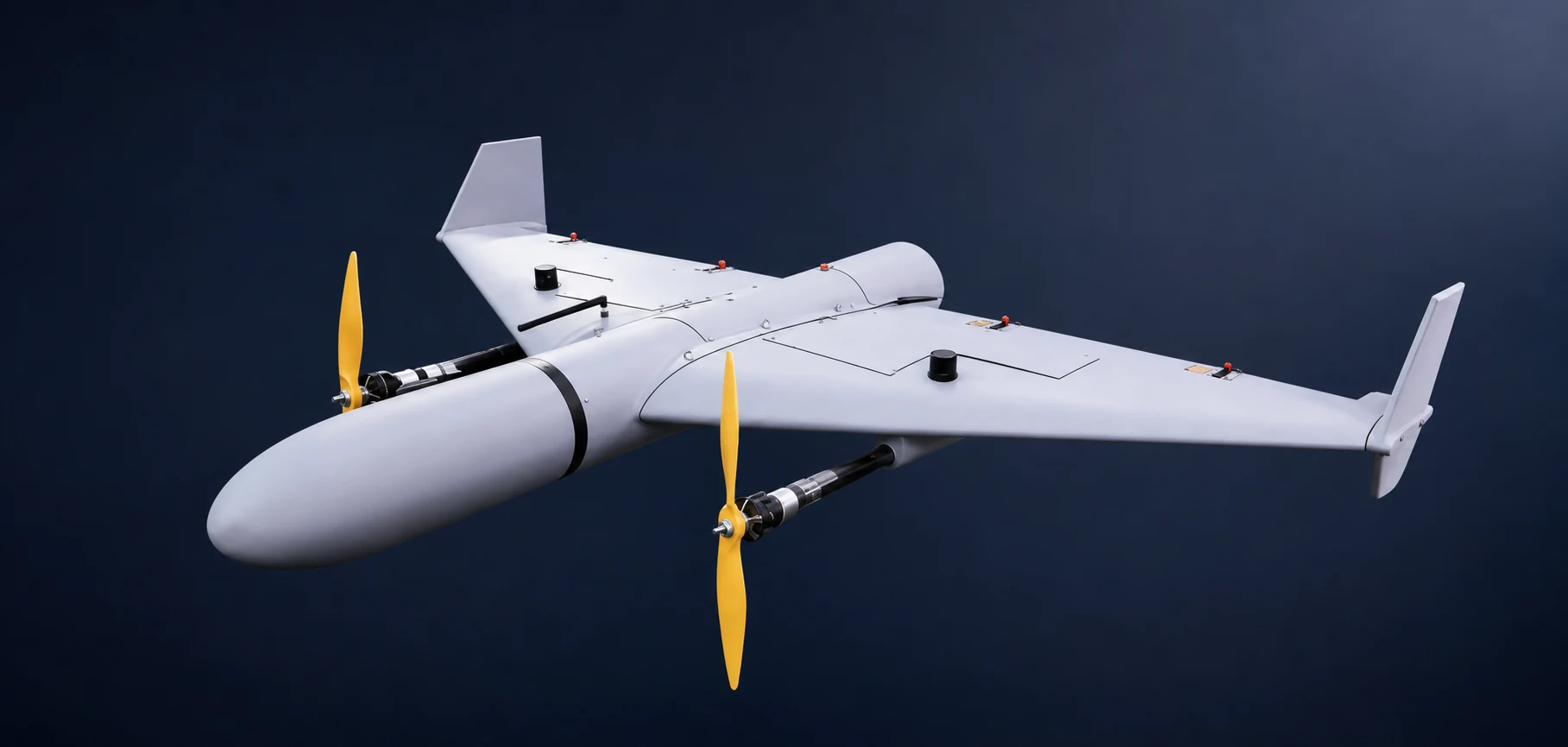

ERS-20
- Dimensions
- 2200 × 1670 × 340 mm
- Maximum Takeoff Weight
- 55 kg
- Payload
- 15—20 kg
- Full-load Endurance
- Approx. 90 min
- Cruise / Max Speed
- 140 / 170 km/h
- Maximum Range
- 200 km
- Maximum Flight Altitude
- 4.5 km
- Operating Voltage
- 14S
- Launch Method
- Catapult Launch
FIXED WING / RAPID DEPLOYMENT

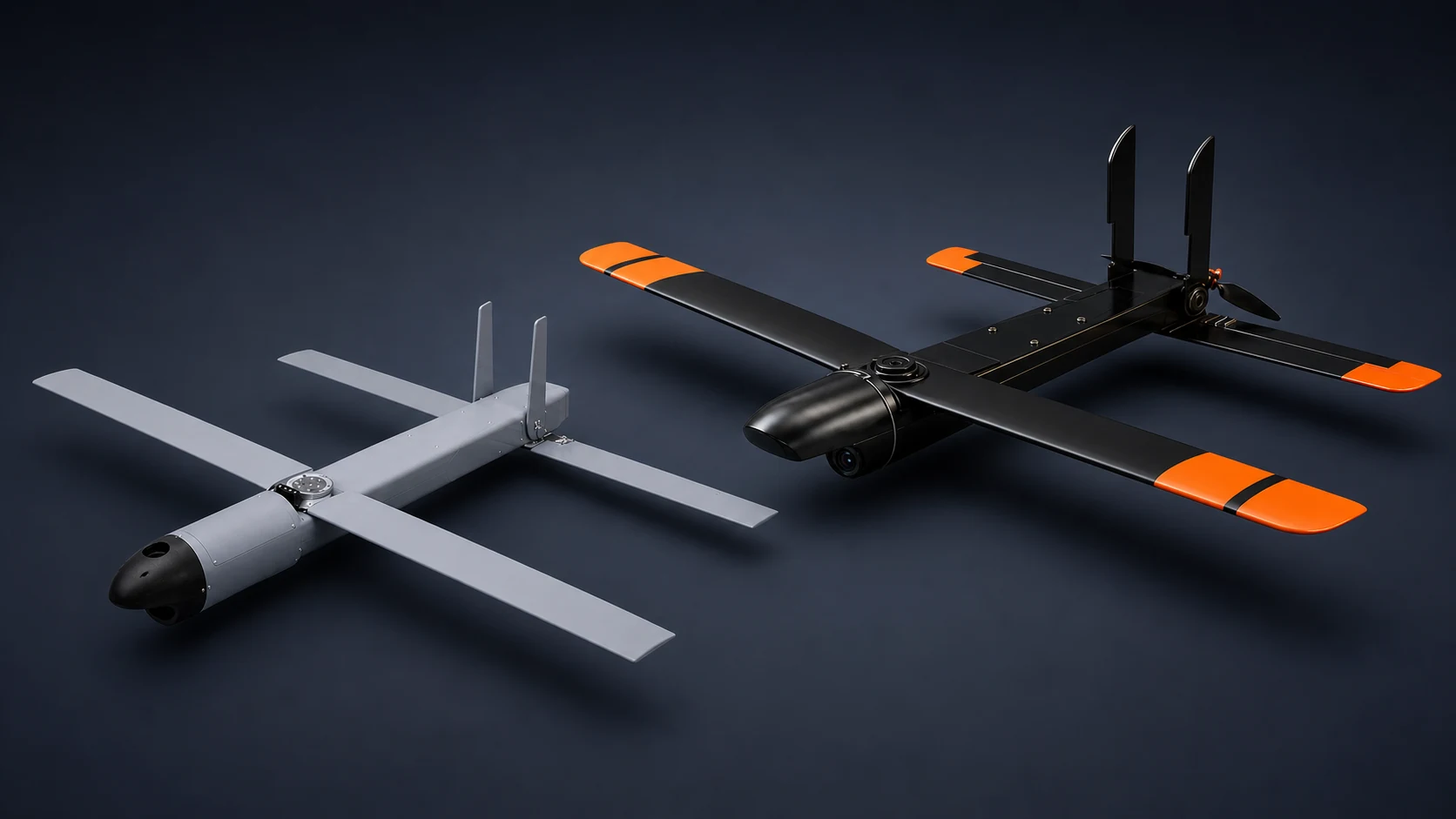

Switchblade Drone
1400 mm Version
- Folded Dimensions
- 1300 × 120 × 120 mm
- Deployed Dimensions
- 1400 × 1300 × 240 mm
- Maximum Takeoff Weight
- 10 kg
- Payload
- 1.5—2.5 kg
- No-load / Full-load Endurance
- Approx. 40 / 25 min
- Cruise / Max Speed
- Approx. 120 / 160 km/h

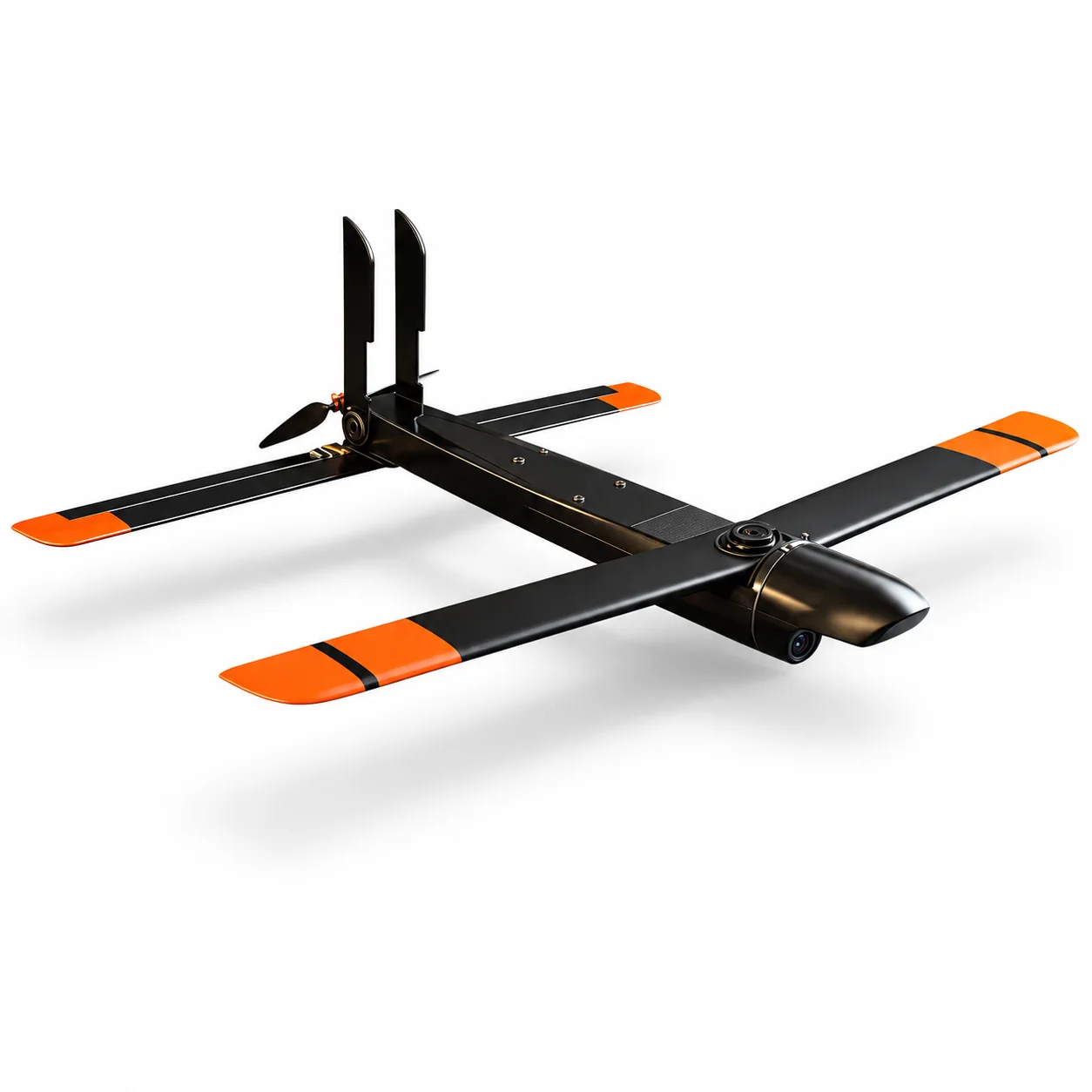

1800 mm Version
- Folded Dimensions
- 1500 × 160 × 160 mm
- Deployed Dimensions
- 1800 × 1500 × 320 mm
- Maximum Takeoff Weight
- 15 kg
- Payload
- 5 kg
- No-load / Full-load Endurance
- Approx. 40 / 25 min
- Cruise / Max Speed
- Approx. 120 / 160 km/h
FIXED WING / FLYING WING

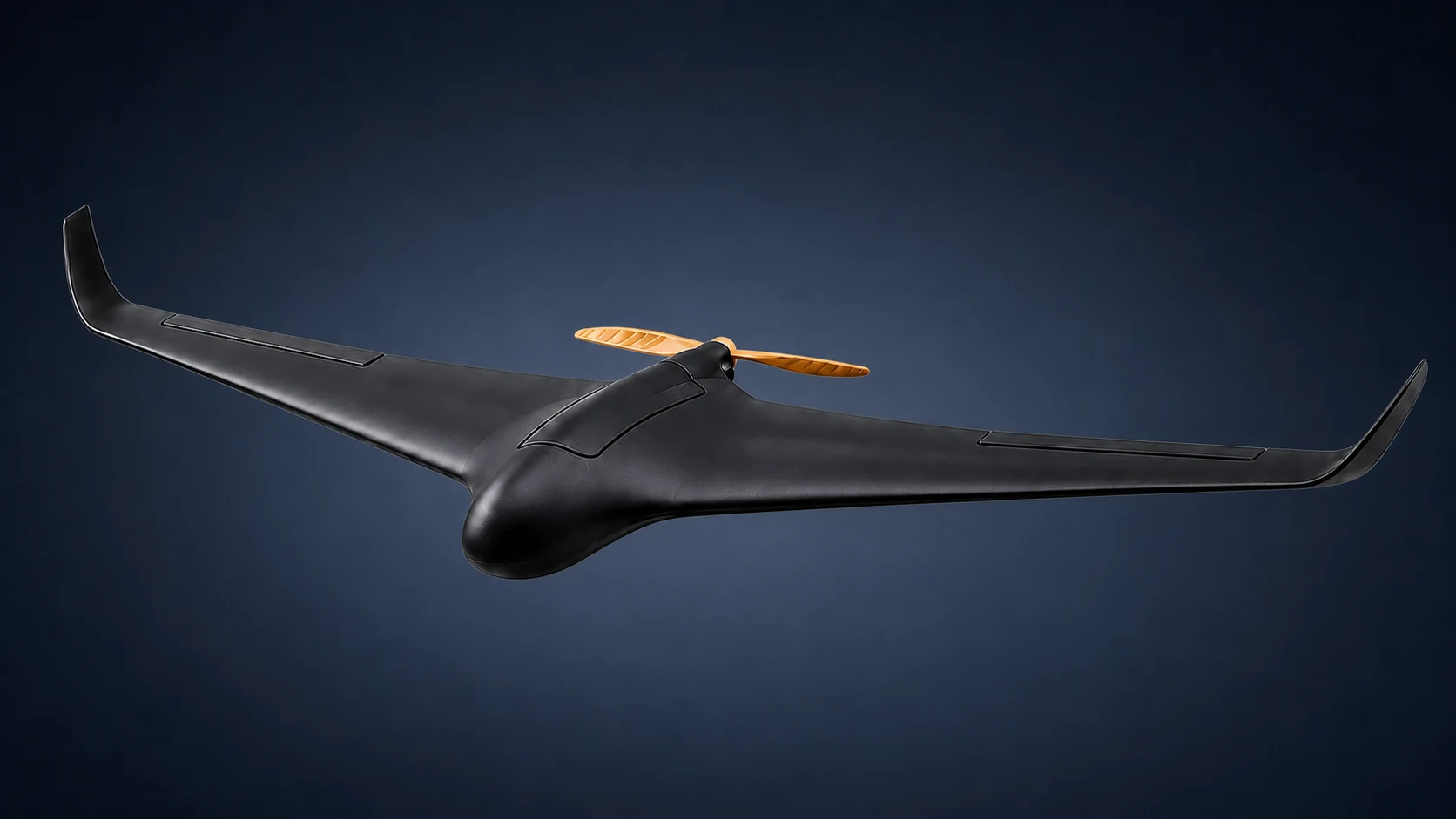

X8
- Wingspan
- 2150 mm
- Length / Height
- 790 / 200 mm
- Empty Weight
- 12 kg
- Maximum Takeoff Weight
- 18 kg
- Payload
- 6 kg
- Cruise Speed
- 120 km/h
- Range
- 60—100 km
11 / FLIGHT TEST VIDEOS
JT SERIES TAKEOFF AND FLIGHT RECORDS.
Representative lightweight videos for five JT platforms load only after playback begins for faster page review.
12 / CONFIGURATION QUESTIONS
EVALUATE THE PLATFORM THROUGH FOUR MISSION CONDITIONS.
Takeoff Method
Does the mission site provide a runway or suitable catapult-launch conditions?
Endurance & Range
How much area or route length must one mission cover?
Speed & Communications
What do mission speed, terrain and range require from the communication system?
Mission Payload
Which imaging, LiDAR or mission equipment must be integrated?
